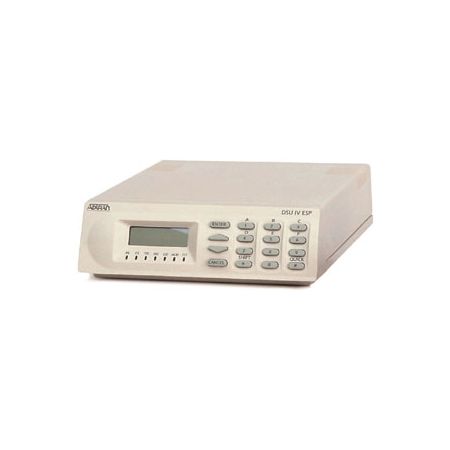

Adtran DSU IV ESP DDS CSU/DSU Item # 989065
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
989065
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The ADTRAN DSU IV ESP is an all-rate data service/channel service unit (DSU/CSU) with an integral SNMP (simple network management protocol) agent and optional dial backup (DBU) capabilities. It provides an interface between digital data service (DDS) or 4-wire Switched 56 and the customer's data terminal equipment (DTE). The DSU IV ESP provides access to traditional dedicated point-to-point, multi-point, or frame relay services.The unit supports DDS rates from 2.4 to 64 kbps including 19.2 and 38.4 kbps, 4-wire Switched 56 operation, embedded SNMP and Telnet. Control port provides SLIP/PPP access to SNMP or VT 100 terminal configuration, there are two ESP option slots, 10BaseT Ethernet SNMP access port is available with ESP Ethernet card. The unit features automatic or manual dial backup with ESP DBU cards; options include 4-wire Switched 56, V.34, and ISDN. The unit responds to standard loopback commands from the telephone company central office. In addition, there are several built-in test capabilities. Complete control, configuration, and diagnosis are available through a 16-key keypad and a two-line by 16-character LCD display. A VT 100 terminal configuration and control mode is also available through the control port. Flash download capability allows installation of new features and enhancements.
Product Details
| Item # | 989065 |
| Manufacturer # | 989010 |
| height | 2.4 in |
| Additional Information | Power supply: Integrated; DTE Rates Provided: - DTE rates match service rates - DTE-to-loop rate matching in both dedicated and switched modes; Clocking: - Normal DDS or private network tributary (slaved to network receive clock) - Private network master (internal) - Normal DDS tail circuit - Private network master (slaved to external clock); Switched Mode Dialing Options: - Stored number - Front panel keypad - DTR dialing of stored numbers - In-band AT commands - V.25 bis in-band dialing |
| Certifications & Standards | FCC Part 15; Class A; Part 68; Industry Canada CS03; UL and CUL |
| width | 8 in |
| package contents | Two 8-pin to 8-pin modular cables; Modular to female DB-25 adapter; User Manual |
| depth | 10.4 in |
| Product Name | DSU IV ESP DDS CSU/DSU |
| manufacturer | Adtran |
| weight | 4.50 lb |
| Maximum Power Consumption | 5 W |
| brand name | Adtran |
| Input Voltage | 115 V AC |
| Digital Ports Qty | 1 |
| Serial V.35 Interface | Yes |
| Number of Total Expansion Slots | 2 |
| color | white |
| warranty length | 5-year limited |
| Show More ▾ |
